Note from Twofer: These reference guides originally appeared on: Wolf's Unreal Engine Editing site.
----- Special mouse clicking combinations -----
A + right mouse click: Add actor there. L + right mouse click: Add light there.
----- Shortcut keys -----
Delete: Delete selected actors. 1, 2, 3: Slow, medium, and fast movement speed. F1: Help. F4: Actor properties. F5: Surface properties. F6: Level properties. F7: Compile changed scripts. F8: Rebuilder. B: Toggle brush visibility in the current viewport. H: Toggle actor visibility in the current viewport. P: Toggle player controls or realtime update of the viewport. Shift-A: Select all actors. Shift-B: Select all surfaces belonging to the selected surfaces' brushes. Shift-C: Select adjacent coplanar polygons. Shift-D: Duplicate selected actors. Shift-F: Select adjacent floors. Shift-G: Select surfaces belonging to the selected surfaces' groups. Shift-I: Select surfaces with items matching the selected surfaces' items. Shift-J: Select all adjacent surfaces(flood-fill). Shift-L: Look ahead in the current viewport (no pitch or roll). Shift-M: Memorize selected surfaces. Shift-N: Select none. Shift-O: Select surfaces from intersection of selected surfaces and memory. Shift-P: Select all surfaces. Shift-Q: Reverse the set of selected surfaces. Shift-R: Recall memorized surface selection. Shift-T: Select all surfaces which use the current texture. Shift-U: Select union of selected surfaces and memorized surfaces. Shift-W: Select adjacent wall surfaces (flood-fill). Shift-X: Select exclusive or of selected surfaces and memorized surfaces. Shift-Y: Select adjacent slanted surfaces. Shift-Z: Select none. Ctrl-A: Add brush to world. Ctrl-B: Load brush. Ctrl-C: Copy. Ctrl-D: Deintersect brush with world. Ctrl-E: Save as. Ctrl-L: Save level. Ctrl-O: Load level. Ctrl-P: Play level. Ctrl-N: Intersect brush with world. Ctrl-R: Redo. Ctrl-S: Subtract brush from world. Ctrl-V: Paste. Ctrl-W: Duplicate. Ctrl-X: Cut. Ctrl-Z: Undo.

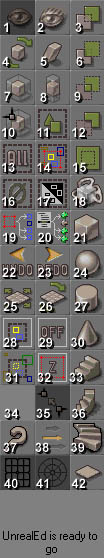

This is the Tool Bar with its Icon's labeled
|
- Move camera
- Zoom camera
- Add brush to world
- Rotate brush
- Shear brush
- Subtract brush from world
- Scale brush
- Stretch brush
- Brush intersection
- Snapscale brush
- Select all polys
- Brush deintersection
- Select all actors
- Select actors inside brush
- Add special brush
- Select none
- Invert actor selection state
- Add movable brush
- Replace selected brushes
- Replace selected nonbrush actors
- Build a cube
- Undo last operation
- Redo last operation
- Build a sphere
- Pan textures
- Rotate textures
- Build a cylinder
- Drawing region: selected actors
- Drawing region: off
- Build a cone
- Hide selected actors
- Drawing region: brush Z(depth)
- Build a stair
- Nothing
- Toggle vertex snap
- Build spiral stair
- Get help
- Camera speed
- Build curved stair
- Toggle grid
- Toggle rotation grid
- Build a sheet
|
